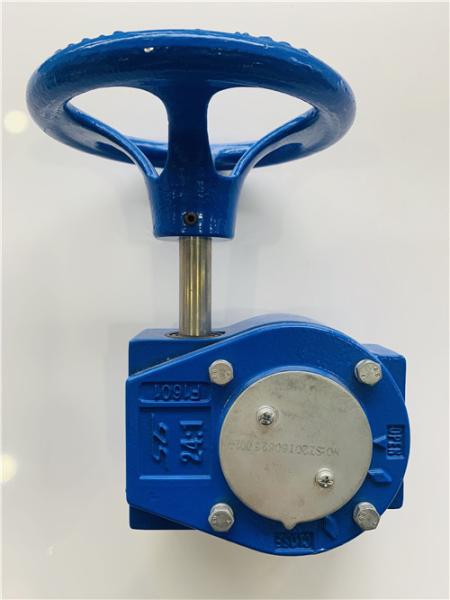

Cast Steel IP65 Partial Turn Handwheel Gear Operator

Ask Lasest Price
Brand Name :	Stard-gears
Model Number :	SLJ
Certification :	ISO90001
Price :	Negotiable
Payment Terms :	D/P, T/T
Supply Ability :	1000 Pcs-6 weeks
Delivery Time :	20~30 work days

Add to Cart

Product Details
Company Profile

Cast Steel IP65 Partial Turn Handwheel Gear Operator

2inch Ductile Iron Handwheel Gear Operator For BUTTERFLY

1 . Descriptions with2inch Handwheel Gear Operator:

Handwheel Gear Operator is mainly used to cooperate with the starting actuator, and 2inch Handwheel Gear Operator is divided into double-acting actuator and single-acting actuator

SLJ series gear operators
This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.

Shell--refers to the cover is made of hard aluminum alloy, with anodizing treatment and polyester powder coating. High corrosion resistance, waterproof grade is IP67. IP68 and explosion-proof type are optional.

2 . Specifications with 2inch Handwheel Gear Operator:

Product Name	Handwheel Gear Operator
Meterial:	Cast Steel
Protection Grade:	IP65
Temperature	-20 ℃ ~120 ℃
Application	General,Oil,Gas,Water

3.Applications with 2inch Handwheel Gear Operator:

4.Quality Control of 2inch Handwheel Gear Operator:

1.Position indicator-installed on the central shaft, used to observe the position of the valve. In order to avoid deposition and facilitate observation, it is designed by convex lens.

2.Heater and thermostat-used to control the temperature inside the actuator to avoid internal humidity

3.Limit switch-two mechanical and electronic dual limit. The mechanical limit screw is adjustable, safe and reliable. The electronic limit switch is an SPDT controlled by a cam. The position of the limit switch can be set accurately and conveniently through simple adjustments.

4. Torque switch-provides overload protection (except OHQ 005/008/010), and when the valve is blocked, the power is automatically cut off to avoid damage to the valve and actuator. (Factory setting, no need for user modification)

5.Self-locking-precision worm gear drives high torque, low noise (up to 50dB) and long service life. The self-locking function prevents reverse rotation, ensuring stability and reliability. The high-efficiency lubricating oil has been added before leaving the factory and no longer needs to be added.

5.More Picture:
