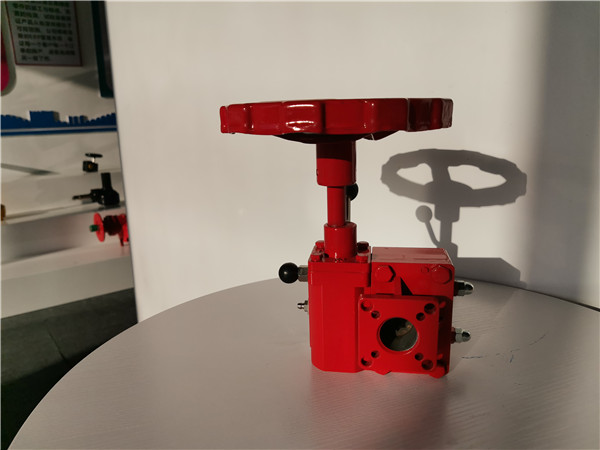

    Handwheel Cast Aluminium 22000NM IP68 Valve Gear Operator

    Ask Lasest Price
    Brand Name : Stard-gears
    Model Number : SLJ
    Certification : ISO90001
    Price : Negotiable
    Payment Terms : D/P, T/T
    Supply Ability : 1000 Pcs-6 weeks
    Delivery Time : 20~30 work days
    • Product Details
    • Company Profile

    Handwheel Cast Aluminium 22000NM IP68 Valve Gear Operator


    300NM-22000NM Ip65-IP68 Valve Gear Operators As Handwheel Gearbox


    SLJ series gear operators

    This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.


    This series of products can be die-cast aluminum, WCB, customers can choose according to the requirements, die-cast aluminum cost-effective, WCB strength is better, WCB can be used in nuclear power, chemical and other projects


    Main Components List

    Part name

    Material

    Small cap

    YL113/ WCB

    Housing

    YL113/ WCB

    Worm gear

    QT500-7/ Bronze

    Bracket cap

    YL113/ WCB


    Main Technical Parameter


    Model

    ratio

    Rating input(Nm)

    Rating output(Nm)

    Efficiency(%)

    Hand-wheel

    SLJ26

    26:1

    50

    300

    23

    Φ200

    SLJ38

    38:1

    65

    550

    23

    Φ200

    SLJ54

    54:1

    70

    620

    25

    Φ250

    80

    700

    Φ300

    75

    1000

    Φ250

    SLJ80

    80:1

    90

    1200

    26

    Φ300

    95

    2000

    Φ350

    SLJ78

    78:1

    160

    3200

    26

    Φ600

    SLJ270

    270:1

    90

    6000

    25

    Φ500

    SLJ320

    320:1

    100

    8000

    25

    Φ500

    SLJ520

    520:1

    160

    22000

    25

    Φ700


    Product Features

    • Aluminum die-cast alloy or cast steel casing
    • Full stamped hand-wheel (200-350)
    • IP65 grade protection
    • Nickel-plated input shaft, with more resistance to corrosion
    • Ductile iron worm gear
    • NBR sealing material
    • Suitable for -20℃ ~ 120℃ working conditions

    Customization

    • Stainless steel or LCB casing
    • IP68 grade protection
    • Aluminum-bronze worm gear
    • Stainless steel input shaft
    • For high temperature up to 320℃
    • For low temperature down to -40℃
    • For marine use
